Pitched Roof Solar Racking System
Sunlink Energy Pitched Roof Racking System is engineered for the maximum flexibility possible in designing and planning for the commercial and residential roof solar system. It is applicable to install the usual framed module to flush with the pitched roof. The special extruded aluminum rail, the tilt-in module, the clamp kit and the various roof hooks can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.

Technical Information
Install site: Pitched Roof; Tilt Angle: Flushed with the roof(10~60 deg); Building Height: 20 m; Max Wind Speed: <60m/s
Snow Load: <1.4KN/m2; Color: Natural or Customized
Standard: AS/NZS 1170 and other international Standard
Material: High Class Aluminum alloy Al6005-T5& Stainless steel 304
Anticorrosive: anodized aluminum & stainless steel
Warranty: Ten years warranty and twenty years service life

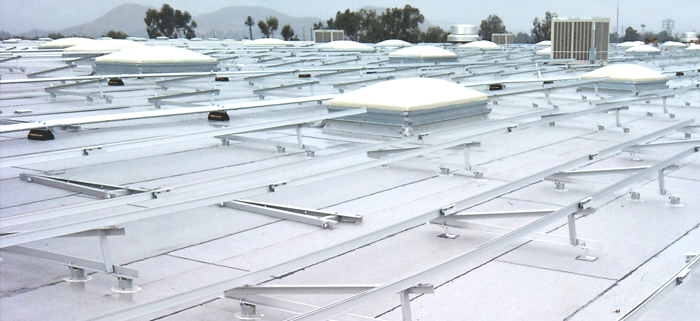

Ballasted Solar Mounting System
Sunlink Energy Ballasted mounting System is a grace highly engineered solution that secures the array without damaging the flat roof. It is compatible with the usual framed photovoltaic modules and typically does not require roof penetrations. Made from lightweight and strong aluminum construction, the Grace solar ballasted solution will arrive pre-assembly and pre-cut to prevent corrosion and save your labor cost and installation time.

Technical Information
Install site: Flat Roof
Tilt Angle: 5deg, 10deg, 15deg, 20deg,
Module Orientation: Landscape
Building Height: <20 m
Max Wind Speed: <60m/s
Snow Load: <1.4KN/m2
Distributed weight: 10~25 kg/m2
Standard: AS/NZS 1170 and other international Standard
Material: High Class Aluminum alloy Al6005-T5& Stainless steel  fasten ; Color: Natural
Warranty: Ten years warranty and twenty years service life

Adjustable Tilt Solar Racking System
Sunlink Energy Adjustable Tilt Solar Racking System is applicable to install the usual framed module to tilt a certain angle with the roof. The solar system can be a fixed angle or adjustable such as 10~15 deg, 15~30 deg and 30~60 deg for your requirement. The special extruded aluminum rail, the tilt-in module, the clamp kit and the round leg can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance

Technical Information
Install site: Low profile Roof or flat roof
Tilt Angle: 10~60 deg; Building Height: 20 m
Max Wind Speed: <60m/s; Snow Load: <1.4KN/m2
Standard: AS/NZS 1170 and other international Standard
Material: High Class Aluminum alloy Al6005-T5& Stainless steel 304
Anticorrosive: Anodized aluminum & stainless steel
Color: Natural and Customized
Warranty: Ten years warranty and twenty years service life

Metal Roof Solar Racking System
Sunlink Energy Metal Roof Solar Racking System is engineered for the maximum flexibility possible in designing and planning for   the commercial and residential roof solar system. It is applicable to install the usual framed module to flush with the pitched roof. The special extruded aluminum rail, the tilt-in module, the clamp kit and the various roof hooks can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.

Technical Information
Install site: Pitched Roof
Tilt Angle: Flushed with the roof （10~60 deg）
Building Height: 20 m; Max Wind Speed: <60m/s
Snow Load: <1.4KN/m2; Color: Natural or Customized
Standard: AS/NZS 1170 and other international Standard
Material: High Class Aluminum alloy Al6005-T5& Stainless steel 304
Anticorrosive: anodized aluminum & stainless steel
Warranty: Ten years warranty and twenty years service life.

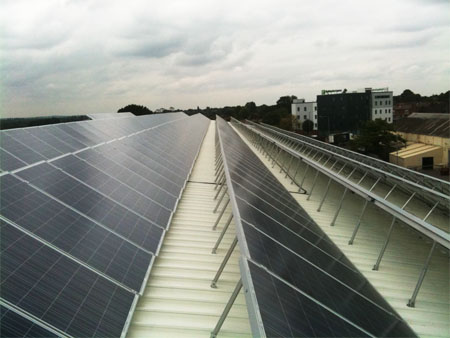

Fixed Tilt Solar Racking System
Sunlink Energy Fixed Tilt Solar Racking System is applicable to install the usual framed module to tilt a certain angle with the roof. The solar system can be a fixed angle or adjustable such as 10~15 deg, 15~30 deg and 30~60 deg for your requirement. The special extruded aluminum rail, the tilt-in module, the clamp kit and the round leg can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.

Technical Information Install site: Low profile Roof or flat roof
Tilt Angle: 10~60 deg; Building Height: 20 m
Max Wind Speed: <60m/s; Snow Load: <1.4KN/m2
Standard: AS/NZS 1170 and other international Standard
Material: High Class Aluminum alloy Al6005-T5& Stainless steel 304 Anticorrosive: Anodized aluminum & stainless steel
Color: Natural and Customized
Warranty: Ten years warranty and twenty years service life

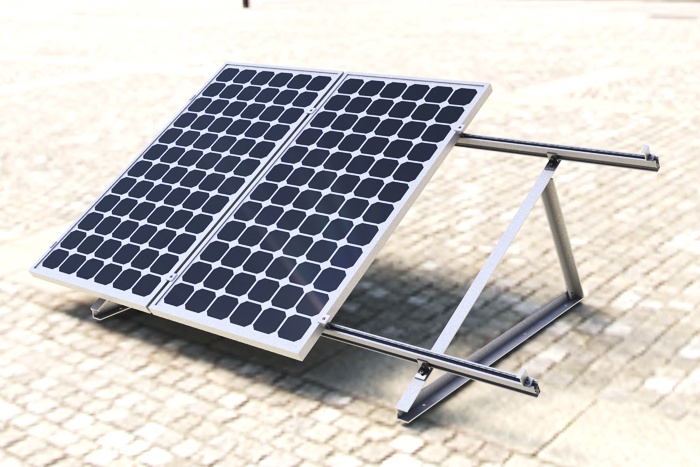

Solar Tilt Racking System
Wind load: max 45m/s
Snow load: max 1.5kN/m2
Laminates/modules: Framed and unframed
Module layout: In series, 6 pcs modules per unit
Module orientation: Vertical or horizontal
Setting angle:5o-60o
Material: Stainless steel
Surface treatment: stainless, Steel & anodized AL
Material: Stainless steel
SUS304,Aluminium 6063-T5
Standard: Suit for EU, AU, US standard
Warranty:10years durability on materials

Feature & Advantage
Easy to install  The tilt-in module can be put into the extruded rail from the any location and can be high pre-assembly with the clamp and leg to minimize the time and cost of installation.
Offer unmatched durability  with all structural components comprised of high class stainless steel and anodized aluminum alloy, it is designed for twenty years service life and backed by ten years warranty.
Stand up to extreme weather  The grace solar roof tilt racking system is designed to stand up to the extreme weather complied with the AS/NZS 1170 and other international structure load standard by the skilled engineer. The main support components also have been test to guaranty its structure and load-carrying capacity.
Provide broad installation flexibility  These systems accommodate most commercially available framed solar panels and diverse roof types, and they can scale easily from small to large, multi-megawatt installation.
